Product Overview
Perfect for cabinetry, shelving, and ready-to-assemble furniture where clean lines and color-matched durability matter, this white PVC edge banding delivers seamless edge coverage on MDF, particleboard, and plywood substrates. Its T-shaped profile locks securely into routed grooves—eliminating visible gaps, lifting, or peeling at corners—even after repeated handling or light impact. Designed specifically for UK and EU joinery standards, the 2mm thickness balances flexibility with structural resilience, while the matte white finish replicates common laminate and melamine surfaces without glare or tonal mismatch. As genuine white PVC edge banding—not painted or laminated—it retains consistent whiteness over time and resists yellowing from ambient UV exposure.
Key Features
- T-shaped profile engineered for mechanical interlock with standard 2mm router grooves, ensuring zero-edge lift during assembly or daily use
- Matte white PVC surface precisely calibrated to match popular white melamine and high-pressure laminates (HPL)
- Pre-glued backing with heat-activated adhesive—no separate glue application required, reducing labor and curing time
- 2mm nominal thickness with tight ±0.05mm tolerance for uniform feed-through edgebanders and manual applicators
- Non-yellowing formulation tested under 1,000+ hours of accelerated UV exposure (ISO 4892-2)
Specifications
| Model / Part Number | U01LS029 |
|---|
Applications

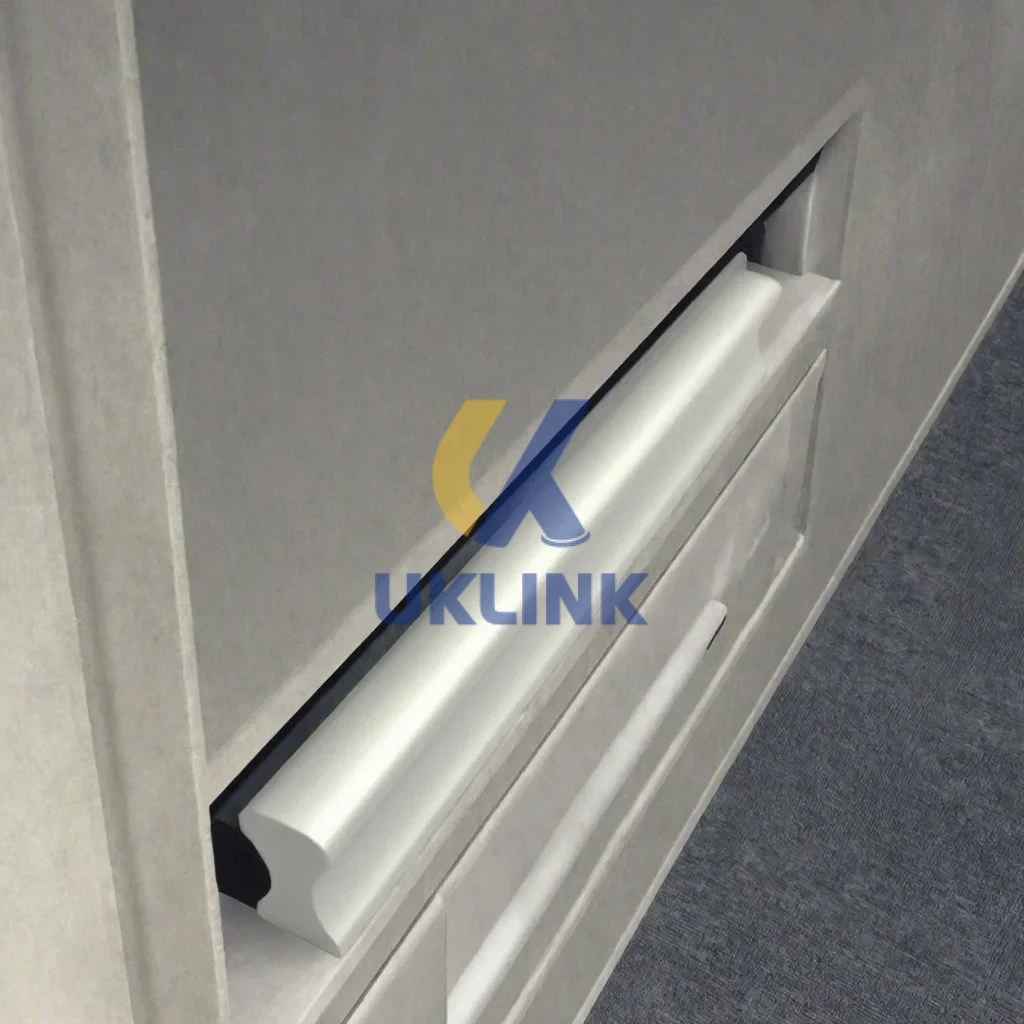

This white PVC edge banding excels in modular kitchen units, office workstations, retail display fixtures, and flat-pack furniture where aesthetic continuity across edges is non-negotiable. Its T-shape makes it ideal for routed panel systems—common in German-style cabinets and IKEA-compatible builds—where traditional L-profile banding risks corner separation. It’s also preferred by CNC shops for automated edgebanding lines requiring precise thickness repeatability and thermal stability during hot-melt application.
Why Choose UKLinkHardware
We manufacture this white PVC edge banding in ISO 9001-certified facilities using virgin PVC compounds—never regrind—to guarantee consistent color, adhesion, and flexibility batch after batch. Lead time averages 5–7 working days from order confirmation, with full OEM support including custom spool lengths, private-label packaging, and technical documentation aligned to CE and REACH requirements.
FAQ
Can this T-shaped white PVC edge banding be applied manually without an edgebander?
Yes—its pre-glued backing activates reliably with a household iron (set to 140–160°C) and firm pressure; however, optimal bond strength and corner integrity are achieved using a dedicated edgebanding iron or compact benchtop unit.
Does the matte white surface show fingerprints or scratch easily?
No—this formulation includes a fine-textured matte co-extrusion layer that diffuses light and resists smudging, while maintaining a 3H pencil hardness rating (ASTM D3363).
Is it compatible with water-based adhesives if I need to reapply?
While designed for hot-melt activation, it bonds well with solvent-free PVA adhesives when used as a secondary reinforcement—just ensure full drying before routing or finishing.
What’s the minimum bend radius for inside corners?
At room temperature, it achieves clean 25mm inside radii without cracking or delamination—ideal for curved drawer fronts and radius cabinet ends.
