Product Overview

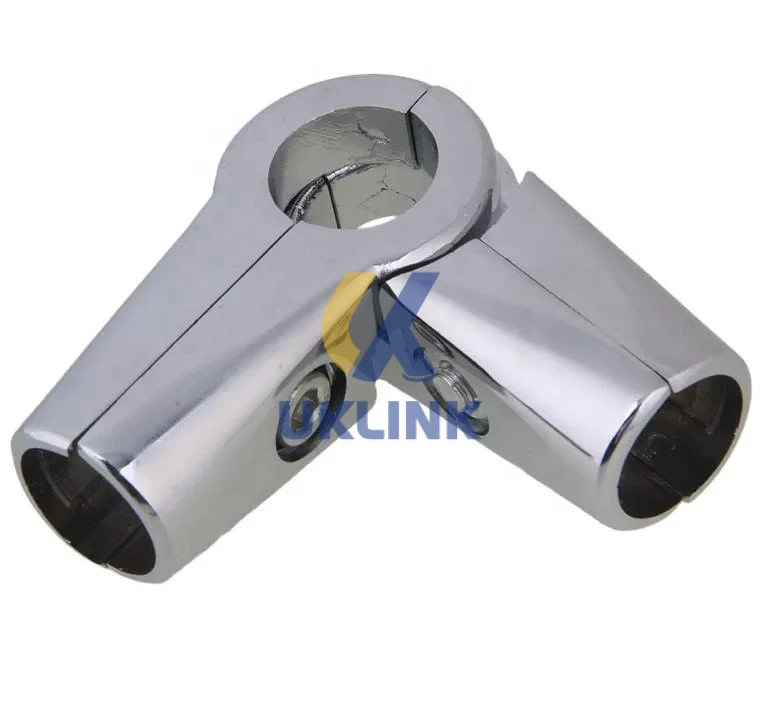

Engineered for furniture makers and modular system integrators who prioritize clean geometry and tool-free adaptability, this chrome-plated steel 3-way tube connector enables rapid assembly of freestanding shelving, display stands, garment racks, and industrial-chic room dividers. Unlike standard L- or T-joints, the 3-way tube connector unifies three round tubes at perfect 90° angles—ideal for creating stable, load-bearing corners without external bracing. Its split clamp design with dual set screws ensures consistent grip across tube diameters (16–25 mm OD), while the mirror-bright chrome finish delivers corrosion resistance and a premium visual continuity with stainless steel hardware and glass elements. Built for real-world workshops—not just catalogs.
Key Features
- Triple-axis connection: joins three round structural tubes simultaneously at precise right angles
- Split clamp body with two independent M4 set screws per arm—adjustable torque control prevents tube marring
- High-grade cold-rolled steel core, electroplated with 8–10 µm decorative chrome for lasting luster and scratch resilience
- No welding or drilling required—installs in seconds using only a 2mm Allen key
- Optimized for visible-frame applications where finish integrity and dimensional repeatability are non-negotiable
Specifications
| Model / Part Number | U01JT009 |
|---|
Applications
This 3-way tube connector excels wherever open-frame functionality meets architectural intent: retail display fixtures needing reconfigurable uprights; home office workstations with suspended desktops and cable management sleeves; hospitality wardrobe frames that double as towel rails; and pop-up exhibition structures requiring fast teardown without sacrificing rigidity. It’s especially valued by designers specifying exposed metal frameworks in minimalist lofts, boutique hotels, and co-working spaces—where every joint must perform silently and look intentional.
Why Choose UKLinkHardware
We manufacture all 3-way tube connectors in ISO 9001-certified facilities using traceable steel stock and in-line plating thickness verification. Every U01JT009 unit undergoes 100% functional testing—clamp tension, angular accuracy, and screw retention—before packaging. Lead time is consistently under 12 days ex-works, and we support full OEM labeling, custom packaging, and engineering collaboration for bespoke frame systems.
FAQ
Can this 3-way tube connector accommodate tubes of different diameters on each arm?
No—it’s engineered for uniform tube OD (16–25 mm) across all three arms to maintain symmetrical load distribution and angular precision. Mixing sizes may compromise clamping force and alignment.
Does the chrome plating withstand humid environments like bathrooms or laundry rooms?
Yes. The 8–10 µm electroplated layer exceeds EN ISO 4520 standards for decorative chromium, offering robust protection against condensation and incidental moisture when installed indoors.
Is there a recommended torque setting for the set screws?
We specify 1.8–2.2 N·m per screw—achievable with a calibrated 2mm hex key. Over-torquing risks thread stripping or localized tube deformation.
Can I use this connector with aluminum or stainless steel tubes?
Absolutely. The hardened steel clamp and chrome surface prevent galvanic corrosion when paired with non-ferrous tubes, provided installation follows our dry-assembly guidelines.
