Product Overview

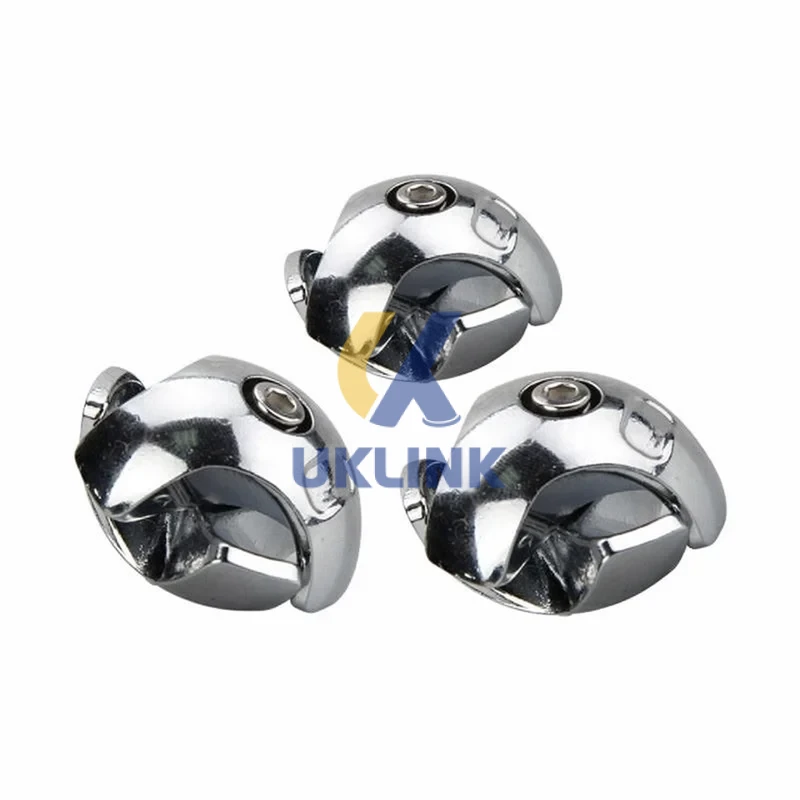

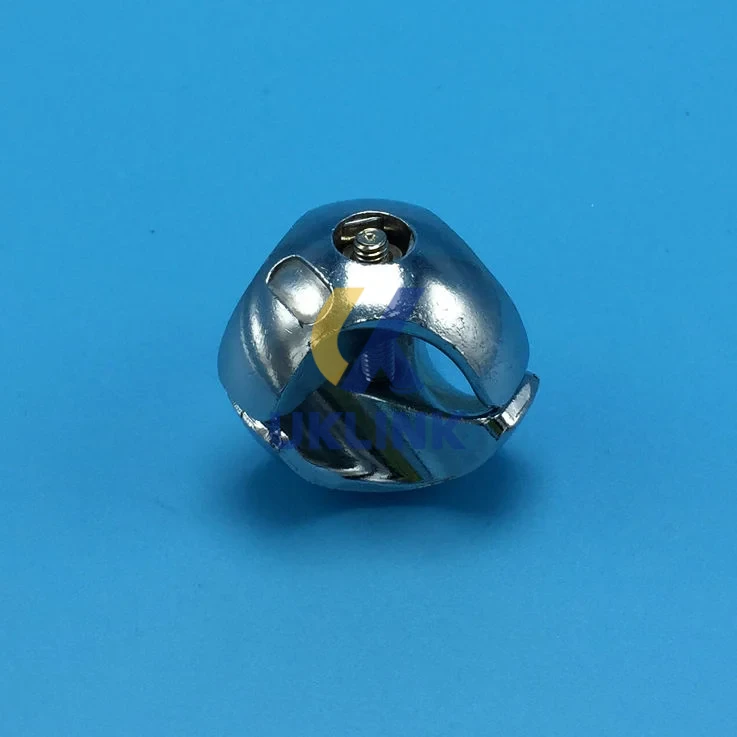

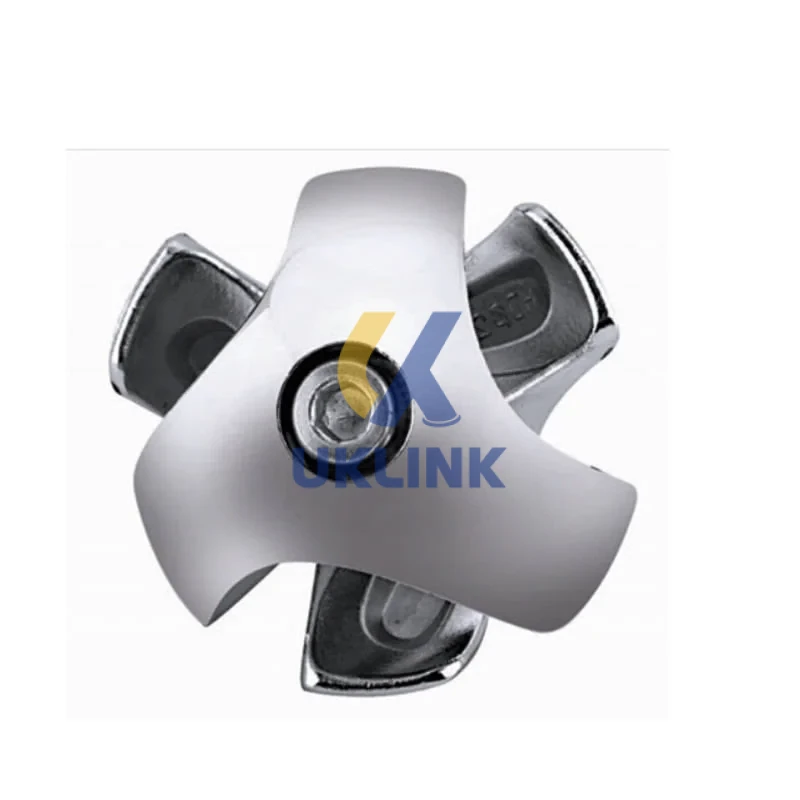

Whether you’re installing built-in wardrobes in a newly renovated London flat or retrofitting industrial-style storage units in a Manchester loft, the Chrome Ball Leveling Glide Foot delivers precision adaptability where floors aren’t perfectly even. Designed specifically for wardrobe hardware & fittings suppliers, this leveling glide foot ensures silent, wobble-free stability on carpet, tile, or uneven concrete—without visible adjustment tools or unsightly shims. Its smooth chrome finish complements modern minimalist interiors while the integrated ball joint allows 8° of multi-axis tilt compensation. For UKLinkHardware’s trade partners and furniture fabricators, it’s not just a foot—it’s a confidence-building interface between design intent and real-world installation reality.
Key Features
- Self-aligning ball-joint mechanism compensates for up to 8° floor irregularity in any direction
- High-polish chrome plating over zinc alloy base—resists tarnishing, scuffing, and humidity exposure
- Integrated non-slip rubber cap (removable) for carpeted or soft flooring applications
- Tool-free height adjustment via knurled collar—0–15 mm range with tactile click stops
- Compatible with standard 8 mm threaded inserts and M6 mounting studs—fits most wardrobe chassis systems
Specifications
| Model / Part Number | U01JT014 |
|---|
Applications
This leveling glide foot excels where precision meets practicality: freestanding and built-in wardrobes requiring flush-floor alignment; modular storage walls needing consistent panel spacing across variable subfloors; commercial wardrobe systems in hotels or student accommodations where tenant-level adjustments are essential; and bespoke joinery projects where visible hardware must balance function with refined aesthetics. Its compact 32 mm diameter profile maintains clean sightlines without compromising load capacity—rated for 80 kg per foot under static load.
Why Choose UKLinkHardware
We manufacture every leveling glide foot to BS EN ISO 9001 standards, with batch-tested tensile strength and surface adhesion reports available on request. Lead times average 5 working days from order confirmation—no minimums for trade accounts. Full OEM support includes custom packaging, engraved branding, and spec sheet co-branding. All units carry CE marking and pass UKCA-compliant corrosion testing (480 hrs salt spray).
FAQ
Can this leveling glide foot be used on hardwood floors without scratching?
Yes—the removable rubber cap provides grip and protection; when removed, the polished chrome base glides smoothly but won’t mar sealed hardwoods thanks to its micro-finished edge radius.
Is the height adjustment lockable after setting?
While no separate locking screw is included, the knurled collar’s engineered thread pitch and friction fit prevent drift—even under repeated loading cycles in high-traffic wardrobe installations.
Does it work with CNC-drilled wardrobe frames using metric insert threads?
Absolutely. The U01JT014 model features an M6 internal thread as standard, compatible with common European and UK-made wardrobe chassis systems using 8 mm or 10 mm pre-threaded inserts.
Can I order mixed finishes for a single wardrobe project?
Yes—we offer small-batch finish variants (matte nickel, satin brass) alongside chrome, with no setup fee for orders of 200+ units per SKU.
