Product Overview

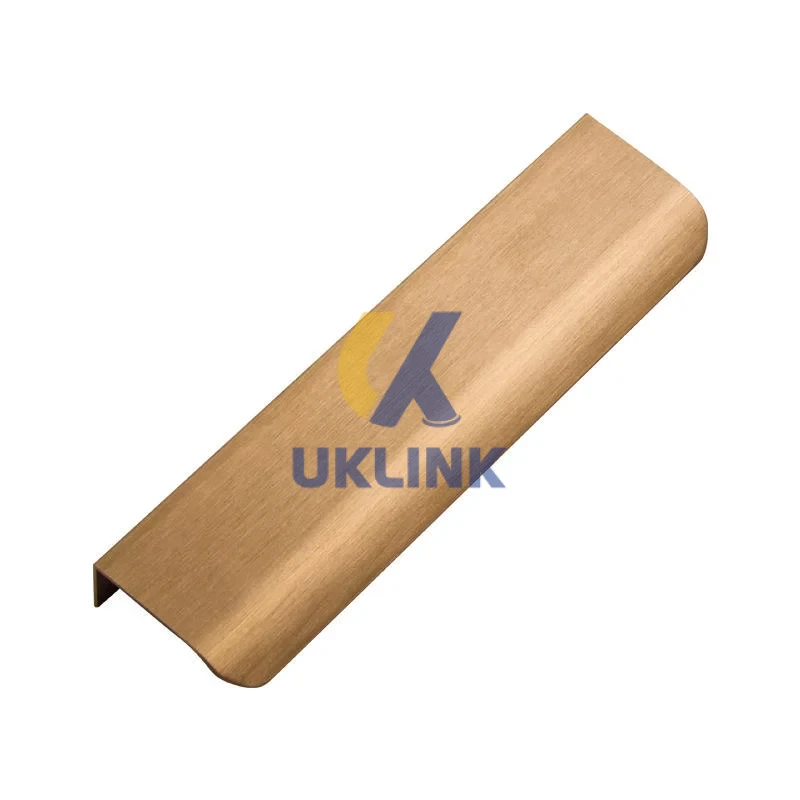

Perfect for high-end cabinetry, retail display fixtures, and architectural millwork, this Brushed Brass Aluminum U-Channel Edge Banding delivers seamless edge protection with refined visual continuity. Unlike standard PVC edge banding, it combines the dimensional precision of extruded aluminum with the warm, tactile appeal of a brushed brass finish—ideal where aesthetics and durability intersect. At 2mm thickness and 22mm width, it accommodates standard panel edges while its integrated 90-degree L-shaped mounting flange ensures rapid, flush installation on MDF, plywood, or particleboard. Designed not as a substitute but as a premium upgrade to conventional PVC edge banding, it eliminates yellowing, cracking, and thermal warping—making it a trusted choice for designers who refuse to compromise on finish integrity.
Key Features
- Architecturally precise U-channel profile with softly rounded top edge for glare-free light diffusion
- Brushed brass finish applied over aerospace-grade aluminum—non-tarnishing, fingerprint-resistant, and corrosion-proof
- Integrated 90° L-shaped mounting flange enables tool-free alignment and consistent 2mm reveal
- Thermally stable construction—zero expansion/contraction across -20°C to 60°C operating range
- Compatible with standard edge banding glue systems (PVA, PUR) and CNC pre-glue applicators
Specifications
| Model / Part Number | U01LS042 |
|---|
Applications
This U-channel edge trim excels where visual hierarchy and structural resilience matter most: luxury kitchen island fronts, boutique shelving systems, reception desk perimeters, museum display casework, and commercial door stiles. Its rigid aluminum core prevents flex during handling and machining—unlike flexible PVC edge banding—which means cleaner router cuts, no “roll-over” at corners, and perfect repeatability in mass production. Designers specify it for projects demanding LEED-compliant materials, as it contains zero halogens, phthalates, or VOC-emitting coatings.
Why Choose UKLinkHardware
We manufacture all aluminum edge trims in ISO 9001-certified facilities using traceable raw stock; every U01LS042 batch undergoes surface roughness (Ra ≤ 0.8μm), adhesion (ASTM D3359 ≥ 4B), and salt-spray (NSS 96h) validation. Lead time is consistently under 12 business days—even for custom lengths—and we support full OEM services: laser-engraved branding, bespoke finish matching (RAL/BS/ANSI), and kitted mounting hardware. All products ship with RoHS, REACH, and CPSIA documentation.
FAQ
Can this U-channel edge banding be bent around curved panels?
No—it’s engineered for straight-edge applications only. The aluminum extrusion lacks longitudinal flexibility; attempting cold bending may fracture the brushed brass layer or distort the U-profile.
Does it require special adhesive or application equipment?
No. It bonds reliably with standard PUR or high-solids PVA edge banding glue. For best results, maintain substrate moisture content between 8–12% and apply at 18–25°C ambient temperature.
How does it compare to brass-plated steel edge banding?
Aluminum eliminates galvanic corrosion risk when installed near stainless steel hardware or aluminum framing—unlike brass-plated steel, which can pit or delaminate in humid environments.
Is the brushed brass finish applied before or after extrusion?
After. Each U01LS042 profile is fully extruded, stress-relieved, then mechanically brushed and sealed with a clear ceramic-acrylic hybrid coating—ensuring uniform texture and abrasion resistance (Taber CS-10 wheel, 1000 cycles, ΔE < 1.2).
