Product Overview

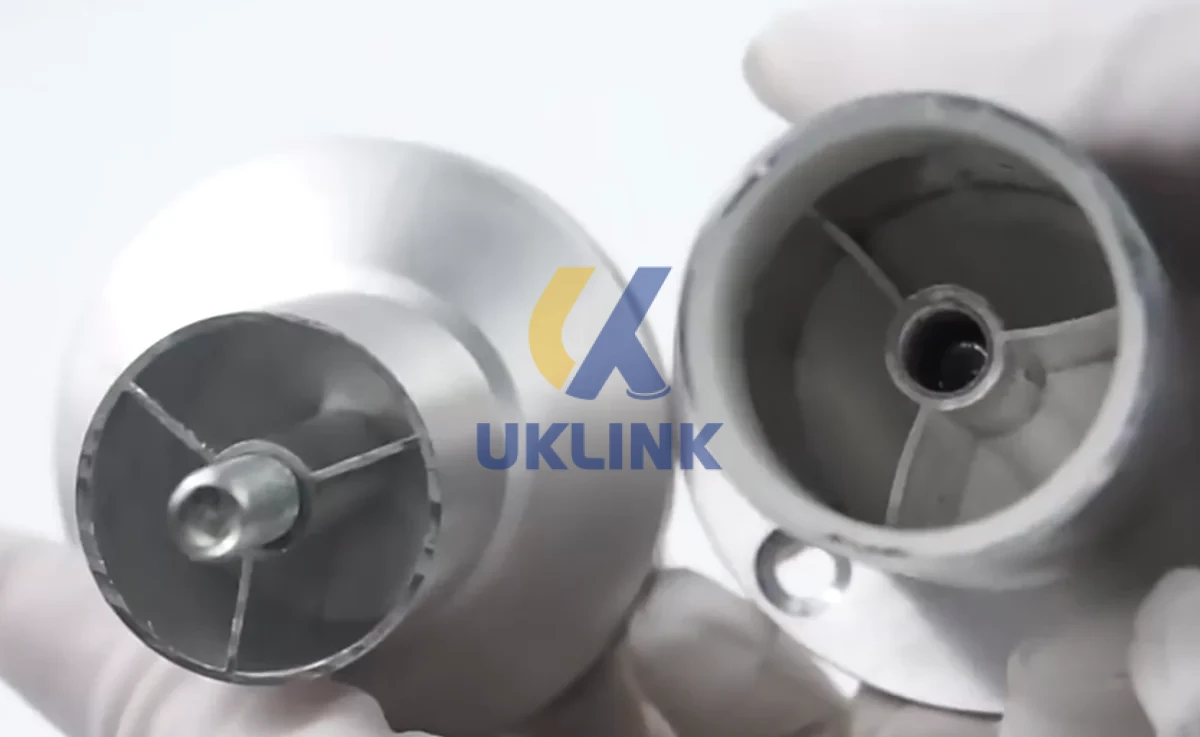

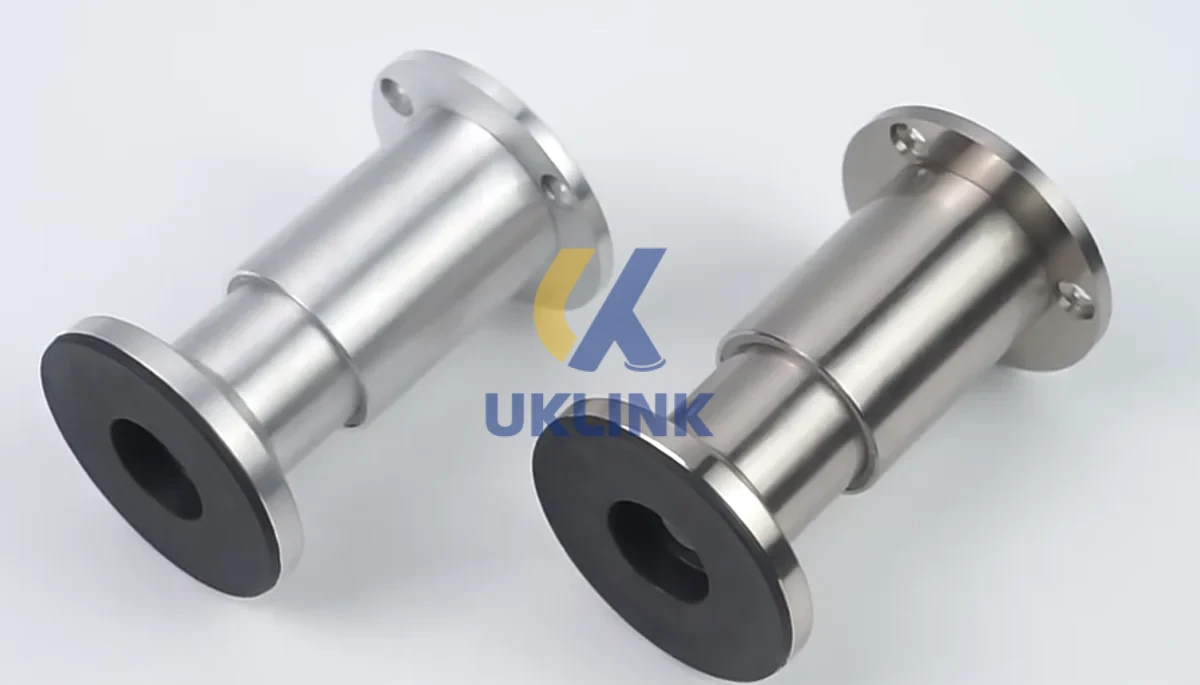

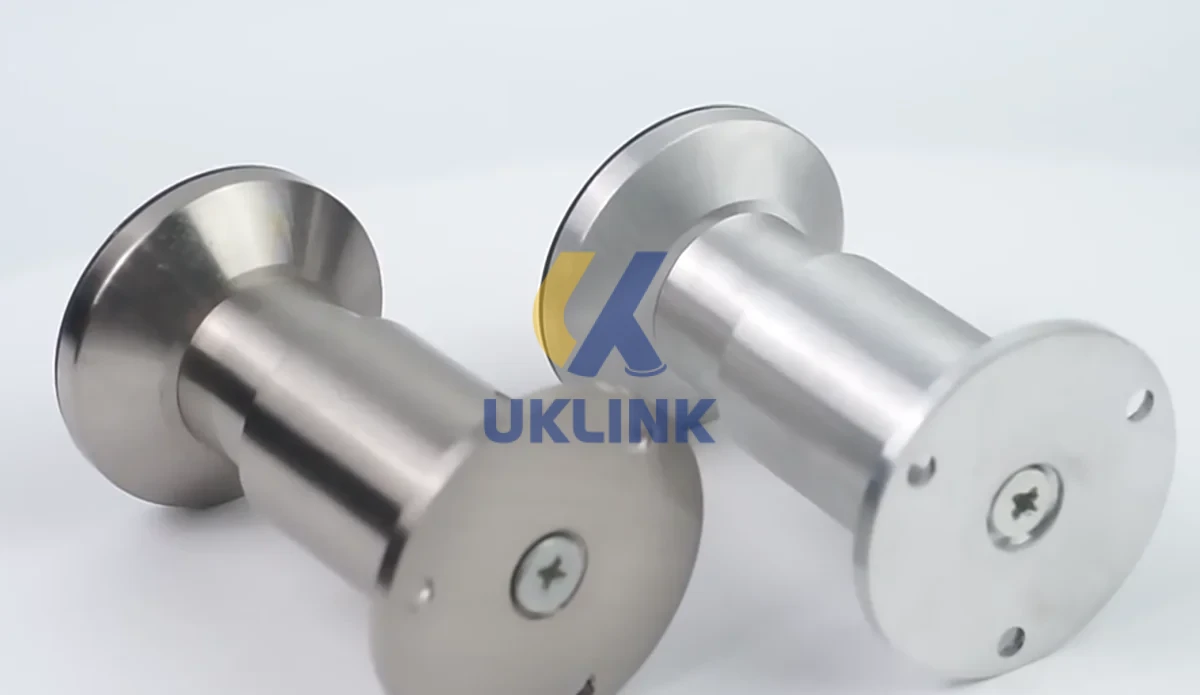

Designed for precision and resilience in dynamic furniture environments, these stainless steel leveling feet deliver seamless adaptability across hardwood floors, tile, concrete, and uneven commercial subfloors. Whether anchoring heavy-duty office workstations, modular kitchen islands, or medical-grade cabinetry, the U01SFJ048 model ensures rock-solid stability without compromise. Crafted from premium 304 stainless steel with a refined brushed finish, they resist corrosion, scuffing, and chemical exposure—making them ideal for high-traffic, hygiene-sensitive, or humid spaces. Unlike generic plastic or zinc-plated alternatives, these stainless steel leveling feet integrate effortlessly into both modern minimalist and industrial-design furniture systems while maintaining exact height control and long-term load integrity.
Key Features

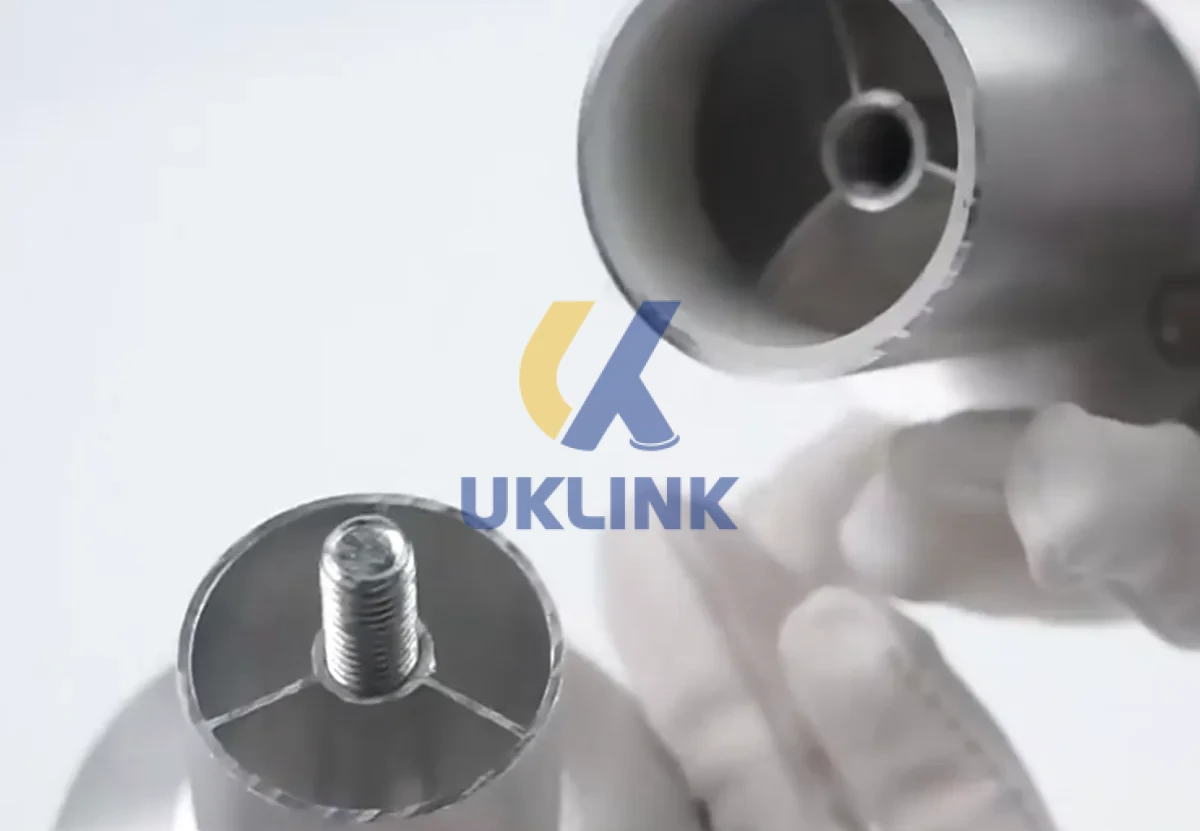

- Full adjustability via precision-machined central M8 threaded rod (±15 mm range) for fine-tuned leveling on irregular surfaces
- Robust base plate with four symmetrically spaced mounting holes (M4) and internal ribbed reinforcement to prevent flex or torque deformation
- Brushed 304 stainless steel construction—non-magnetic, food-safe, and resistant to salt spray, cleaning agents, and thermal cycling
- Low-profile aesthetic: only 32 mm total height at minimum extension, preserving clean sightlines beneath furniture
- Self-centering thread design ensures smooth, wobble-free rotation and consistent load distribution across all four feet
Specifications
| Model / Part Number | U01SFJ048 |
|---|
Applications
These stainless steel leveling feet excel where reliability meets real-world variability—supporting laboratory benches exposed to solvents, hospitality lounge seating on polished terrazzo, custom retail displays on sloped retail floors, and ergonomic sit-stand desks requiring silent, vibration-dampened height transitions. Their non-marking base and corrosion immunity also make them preferred for marine interiors, cleanroom casework, and outdoor-rated furniture installations where galvanic compatibility and UV stability matter.
Why Choose UKLinkHardware
We manufacture every batch of stainless steel leveling feet to ISO 9001-certified standards, with full material traceability back to 304 SS mill test reports. Lead times average 12 business days—even for custom OEM orders—with optional laser engraving of logos or part numbers. All units undergo 100% functional testing: thread torque verification, load cycling (50 kg static × 10,000 cycles), and salt-spray validation (72 hrs ASTM B117). No substitutions, no plating—just genuine 304 stainless steel, engineered for decades—not seasons.
FAQ
Can these leveling feet be used outdoors?
Yes—the brushed 304 stainless steel body and internal threading resist oxidation, rain exposure, and coastal humidity, making them suitable for covered outdoor furniture and architectural installations.
Do they require special tools for adjustment?
No—standard 6 mm hex key or adjustable wrench suffices; the low-torque thread design allows precise, one-handed height tuning even after installation.
Will they scratch my floor?
Not if installed correctly: the flat, burr-free base plate distributes pressure evenly, and the brushed finish eliminates sharp edges—no protective caps needed for most hard surfaces.
Are replacement threaded rods available separately?
Yes—we stock M8 × 30 mm and M8 × 45 mm rods (same 304 SS grade) for field service or retrofit projects under part codes U01-RD0830 and U01-RD0845.
